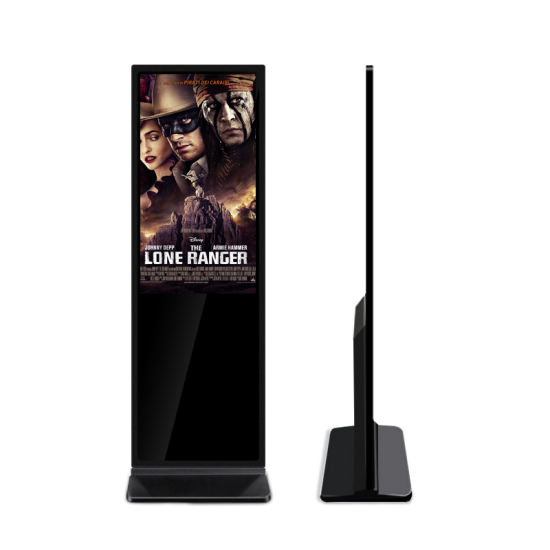

Indoor Superslim Digital Standee
MDM Indoor Kiosk Standee Application
Feature MDM support 32 inch, 43 inch, 49 inch, 55 inch, and 65 inch 30mm slim design
Support MDM CMS solution by Android / Windows platform
Using commercial level panel
Optional built in IR Touch, PCAP touch
All in one superslim digital standee complete with networked contents management system
All in one superslim digital standee complete with networked contents management system
Mobile Phone Remote Control
Computer Remote Control
Automatic timing switch on/off
Automatic recognition play
Auto play
Specifications
| Model | DS-32V | DS-43V | DS-49V | DS-55V | DS-65V |
|---|---|---|---|---|---|
| Screen size | 32 inch | 43 inch | 49 inc | 55 inch | 65 inch |
| Panel type | Brand new IPS LED backlight panel | ||||
| Display area in MM | 699.4 x 393.95 | 942.2 x 529.25 | 1073.78 x 604 | 1209.6 x 680.4 | 1427.5 x 802.5 |
| Brightness | 350 nits | ||||
| Contrast ratio | 1200 : 1 | ||||
| Viewing angle | 89/89/89/89 (Typ.) (CR ≥ 10) | ||||
| Resolution | 1920 x 1080, FHD | ||||
| Power consumption | 55W | 70W | 80W | 95W | 110W |
| Frame | Aluminum profile brushed frame + sheet metal back shell + tempered glass | ||||
| Product color | Black, silver, gold, white (white is optional, customizable) | ||||
| CPU | Rockchip RK3288 quad core Cortex-A17 GPU Mail-T764, main frequency 1.8 GHz | ||||
| RAM & ROM | DDR3 2G, 8G (16G, 32G are optional), support EMMC | ||||
| Operation system | Android 4.4.4 or above | ||||
| Network supported | Ethernet, WiFi, Bluetooth V2.1 + EDR / Bluetooth 3.0 / 3.0 + HS/4.0, 3G, 4G | ||||
| Interfaces | 2*USB, 1*HDMI, 1*SD (Max 64G), 4*RS232, 1*RJ45, 1*Mic, 5* IO detection ports (support infrared sensing of human body), 4*RS232 (support external serial port device module such as 3/4G module, NFC module, printer, card reader, scanner, ID card recognition, etc. | ||||
| Audio formats | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP etc. | ||||
| Video formats | support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. | ||||
| Image formats | support BMP, JPEG, PNG, GIF, etc. | ||||
| Audio output | Left and right channel output, built-in dual 4R/20W, 8R/10W power amplifier | ||||
| Timing ON/OFF | Support | ||||
| Power supply | AC100 ~ 240V, 50 ~ 60HZ | ||||
| Touch type | Infrared touch (IR touch) | ||||
| Touch points | 6-10 touch points | ||||
| Response time | 8 ms | ||||
| Working temp | 0 ~ 50 ºC | ||||
| Storage temp | -20 ~ 60 ºC | ||||
| Working humidity | 10% ~ 90% no condensation | ||||
